AirportMart
Airport Structures and Hardware for Sale and Lease

 001

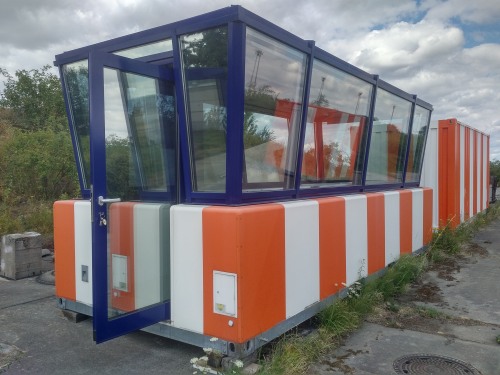

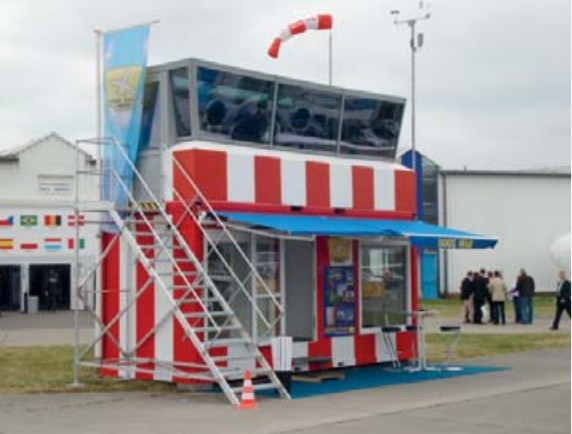

Mobile Tower for ATC/AFIS/Info Services

Mobile ATC tower, 2 storey design. ATC console/working positions for up to 3 air traffic controllers/assistants; Air conditioning/heating, shades, VHF/UHF COM, VCS, Surveillance (ADS-B) equipment, WX display, power generator etc. on request; office/storage in the basement; meets international and ICAO standards; truckable, no height constraints; std. 20ft container footprint (ca. 14 m²);

 002

For SALE: Shelter for NAV/COM/Surveillance equipment, frangible, certified design

Light weight frangible and certified (DFS D0106/2005) shelter for ATC NAV/COM equipment (ILS, OM, MM, GP, DME, VOR, NDB, TACAN, etc.); base frame from galvanized steel; wall from composite sandwich (PP honeycomb core, thermally joined face sheet), thermally welded, insulated; extremely durable, environmentally friendly, non-corrosive; hard fiber composite inner wall; forklift pockets for easy transport. Typ. dimensions: l: 3-6 m, w: 2.4m, h: 2.6m. Colors: ICAO (red/white) or others. Optional equipment: air conditioning, heating, windows, racks, etc.
AVAILABLE FOR IMMEDIATE SALE: new, unused shelter; lamp, door, electrical heating; length: 3 m.

 003

For SALE: VHF Direction Finder, 8.33 kHz, fully certified, new, 2 years full OEM warranty

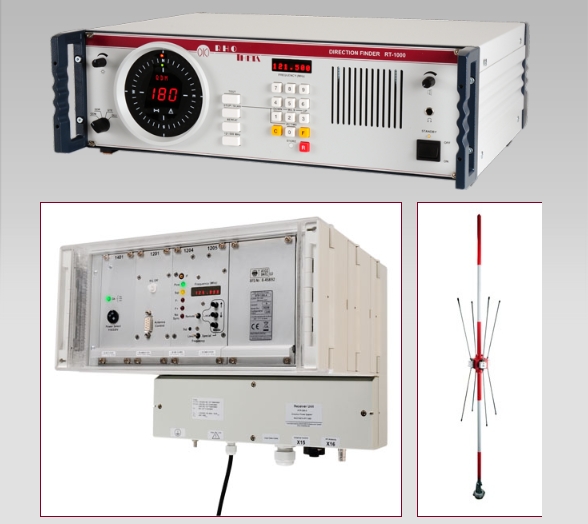

The RHOTHETA RT-1000 Doppler VDF system (formerly Rohde&Schwarz PA030) is designed specifically for ATC applications and complies with all ICAO and ANSP requirements. More than 150 systems are currently in use worldwide.
AVAILABLE FOR IMMEDIATE SALE: new and unused, complete RT-1000 VDF system, including remote compact antenna, controller unit and 19" ATC console insert; recently upgraded to 8.33 kHz spacing by OEM (118.005-136.990 MHz); 2 years full OEM warranty; available immediately.

 003A

For SALE: VHF Direction Finder, 25 or 8.33 kHz, fully certified, used, removed serviceable, overhauled

The RHOTHETA RT-1000 Doppler VDF system (formerly Rohde&Schwarz PA030) is designed specifically for ATC applications and complies with all ICAO and ANSP requirements. More than 150 systems are currently in use worldwide.
AVAILABLE FOR IMMEDIATE SALE: removed serviceable, complete RT-1000 VDF system, including remote compact antenna, controller unit and 19" ATC console insert; upgrade to 8.33 kHz by OEM (118.005-136.990 MHz) on request; restricted warranty; available immediately.

 004

For SALE: VHF 8.33/25 kHz Ground-to-Air Basestation, fully certified, as new condition

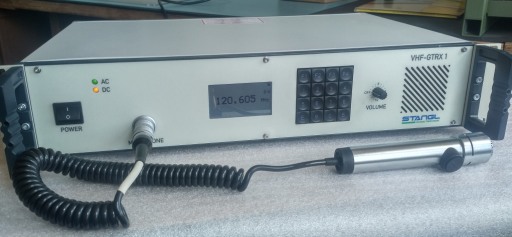

This 19"/2U rack-mountable 8.33/25 kHz Ground-to-air Basestation of Type "Stangl GTRX1 (FSG90)" (Made in Germany) is latest technology and certified for use in EASA airspace with 8.33/25 kHz requirements (118.005 to 136.990 Mhz). The device was rarely in use with a CNS provider, tested and is in excellent condition. It comes with a microphone and operating manual.
AVAILABLE FOR IMMEDIATE SALE: Stangl GTRX1 (FSG90) ATC VHF 8.33/25 kHz Ground Station, removed serviceable, fully certified; available immediately.

 006

For SALE: Vaisala Airport Weather Station (AWOS), full sensor suite; used, removed serviceable, overhauled

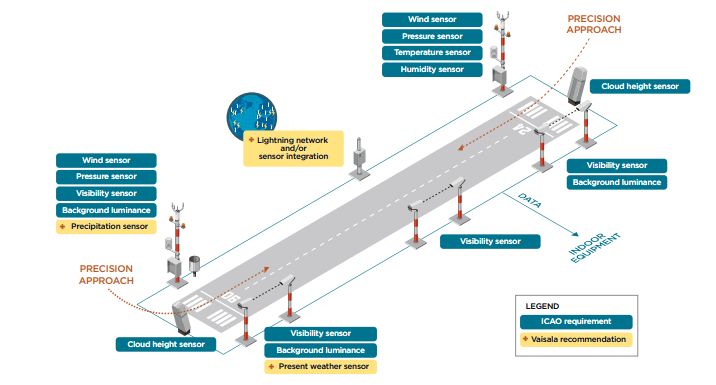

This Vaisala AWOS sensor suite consists of Wind sensor, Precipitation sensor, Visibility sensor, Background luminance sensor, Cloud height sensor (Ceilometer), according to ICAO standards. For new installations or as spare.

  007

For SALE: Rohde&Schwarz XU4200 ATC VHF Airband 8.33/25 kHz Transceiver, used, removed serviceable.

These R&S ATC VHF Airband transceivers were removed serviceable from a major European ANSP ACC operations. Condition: as new, 100% tested and serviceable. Analog (standard VHF radio) or digital (VoIP, VCS) operations possible; Modes: Voice, ACARS, VDL-2; for new installations or as spare; Console or remote operations; rack mountable
Original R&S accessories available;
ZS4200 Configuration Software for Network or USB available;
XU4200 Operating Manual available
We have a larger number of these transceivers available.
